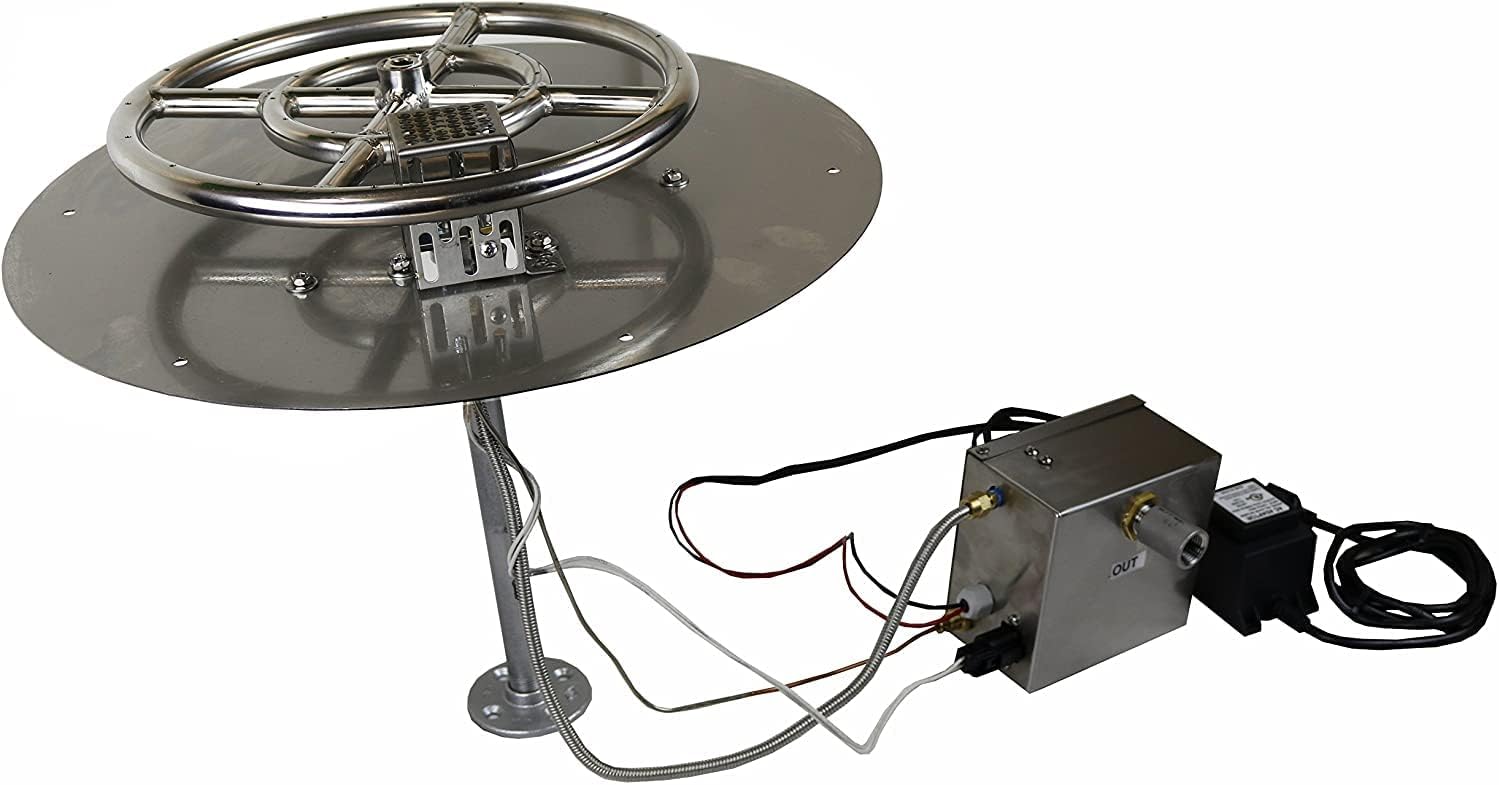

High-Capacity Automatic Outdoor Fire Feature Control System - Electronic Flame Control Ignition Module - Natural Gas or Propane - Igniter for Fire Pits, Fire Features, Fire Bowls/Tables (500,000 BTU)

UP TO 500,000 BTU - HIGH CAPACITY - 12 Volt System - Natural Gas or Propane
INCLUDES: Pilot Shield, Transformer 12V, Pilot Tubing, Thermocouple, Hot Surface Ignitor, Pilot Injector (LP), Pilot Injector (Nat), Pilot Burner, Main Valve, Pilot Valve, Ignition Control
COMPATIBLE WITH JANDY CONTROL
$99.54
$2928.92
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Electrical Information Note: The 12 volt transformer supplied is to be located in a remote location away from the re feature in an approved weath- erproof electrical junction box and installed in accordance with local codes. Recommended Wire Size No less than 12 gauge wire for all installations Maximum Inlet Pressure: 1/2 psi Typical Pressure Requirements for Appliance: Minimum Inlet Pressure: 0.25 psi All connectors are water resilient. BASO BGA-171 series valve and pilot valve. Certi ed CSA 229521-1656058. Coils are encapsulated to protect against moisture. Pilot has robust ame pattern, wind resistant. Pilot injectors are stainless steel. Thermocouple is nickel plated for durability. CoorsTek HSI with protective cage. HSI connection is waterproof. The Power Wire connector is waterproof. Transformers are available. Safety or Active components are CSA Certi ed. 12 vac system to comply to NEC 2014 Article 680 require- ments. -20° to 175° temperature range. Durableconnectionsdesignedtoresistoutdoorconditions. 290,000 BTU’s at 1" pressure drop. TC Flame-sense system. Hot Surface Ignitor (HSI). LED diagnostics. Electronics are ANSI Z21.20-2014 certi ed. iFlame app is available as an option.
